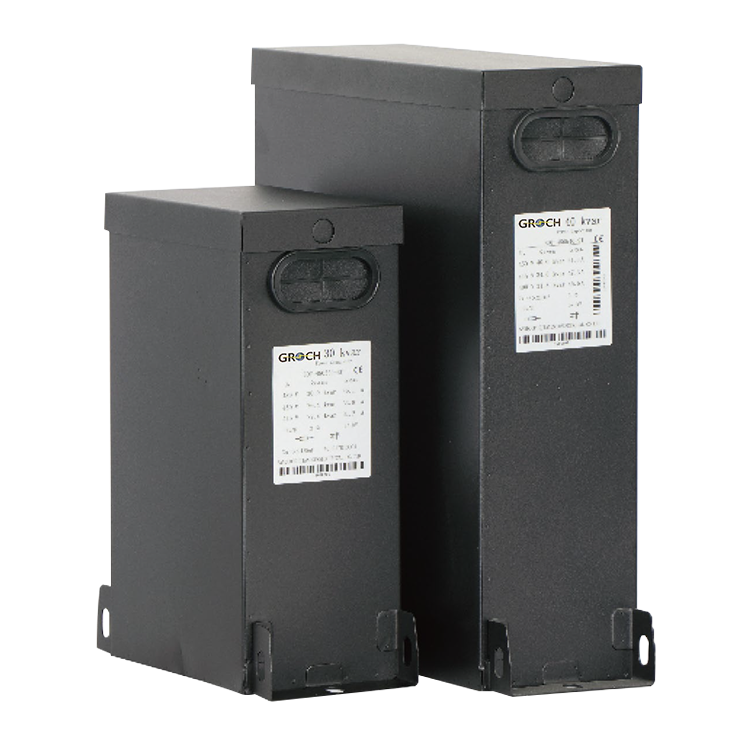

低压防爆型干式电容器

产品介绍

采用高强度钢板为外壳，内部N个小元件组成，每一个小元件都有独立保护，具有顺序保护功能;

内部元件为铝壳纯干胶封装，元件紧靠外壳钢板散热性能强;

产品安全性极高，可在工矿恶劣的环境下使用。

选型表

单相 1 Phase 50Hz 250V

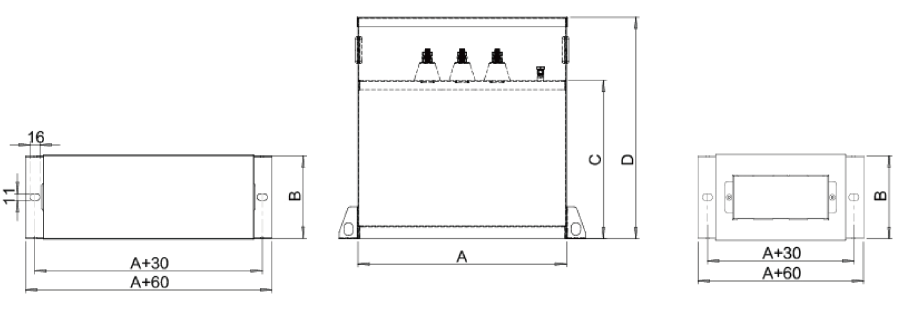

产品型号 Type	额定电压 Rated V.	额定容量 Cap.		额定电流 Rated current	接线端子 Terminal	尺寸 Dimensions
产品型号 Type	额定电压 Rated V.	kvar	μF	A	接线端子 Terminal	A	B	C	D
GRO-DMP-EP 10/250-50	250	10	510	40	M8	200	70	-	350
GRO-DMP-EP 15/250-50	250	15	764	60	M8	200	130	-	350
GRO-DMP-EP 20/250-50	250	20	1019	80	M12	200	130	-	310
GRO-DMP-EP 25/250-50	250	25	1274	100	M12	330	130	-	350
GRO-DMP-EP 30/250-50	250	30	1529	120	M12	330	130	-	350

三相 3 Phase 50HZ 450V

产品型号 Type	额定电压 Rated V.	额定容量 Cap.		额定电流 Rated current	接线端子 Terminal	尺寸 Dimensions
产品型号 Type	额定电压 Rated V.	kvar	μF	A	接线端子 Terminal	A	B	C	D
GRO-CMP-EP 5/450-50	450	5	79	6.4	M8	200	70	-	350
GRO-CMP-EP 10/450-50	450	10	157	12.8	M8	200	70	-	350
GRO-CMP-EP 15/450-50	450	15	236	19.2	M8	200	70	-	350
GRO-CMP-EP 20/450-50	450	20	315	25.7	M8	200	130	-	350
GRO-CMP-EP 25/450-50	450	25	393	32.1	M8	200	130	-	350
GRO-CMP-EP 30/450-50	450	30	472	38.5	M8	200	130	-	350
GRO-CMP-EP 35/450-50	450	35	550	44.9	M8	330	130	-	350
GRO-CMP-EP 40/450-50	450	40	629	51.3	M8	330	130	-	350
GRO-CMP-EP 45/450-50	450	45	708	57.7	M12	330	130	-	350
GRO-CMP-EP 50/450-50	450	50	786	64.2	M12	330	130	-	450
GRO-CMP-EP 60/450-50	450	60	944	77	M12	330	130	-	450
GRO-CMP-EP 70/450-50	450	70	1101	89.8	M12	330	130	-	570
GRO-CMP-EP 80/450-50	450	80	1258	102.6	M12	330	130	-	570

三相 3 Phase 50HZ 480V

产品型号 Type	额定电压 Rated V.	额定容量 Cap.		额定电流 Rated current	接线端子 Terminal	尺寸 Dimensions
产品型号 Type	额定电压 Rated V.	kvar	μF	A	接线端子 Terminal	A	B	C	D
GRO-CMP-EP 10/480-50	480	10	138	12.0	M8	200	70	-	350
GRO-CMP-EP 15/480-50	480	15	207	18.0	M8	200	70	-	350
GRO-CMP-EP 20/480-50	480	20	276	24.1	M8	200	130	-	350
GRO-CMP-EP 25/480-50	480	25	346	30.1	M8	200	130	-	350
GRO-CMP-EP 30/480-50	480	30	415	36.1	M8	200	130	-	350
GRO-CMP-EP 35/480-50	480	35	484	42.1	M8	330	130	-	350
GRO-CMP-EP 40/480-50	480	40	553	48.1	M8	330	130	-	350
GRO-CMP-EP 45/480-50	480	45	622	54.1	M8	330	130	-	350
GRO-CMP-EP 50/480-50	480	50	691	60.1	M12	330	130	-	450
GRO-CMP-EP 60/480-50	480	60	829	72.2	M12	330	130	-	450
GRO-CMP-EP 70/480-50	480	70	968	84.2	M12	330	130	-	570
GRO-CMP-EP 80/480-50	480	80	1106	96.2	M12	330	130	-	570
GRO-CMP-EP 90/480-50	480	90	1244	108.3	M12	330	130	-	570
GRO-CMP-EP 100/480-50	480	100	1382	120.3	M12	400	130	-	570

三相 3 Phase 50HZ 525V

产品型号 Type	额定电压 Rated V.	额定容量 Cap.		额定电流 Rated current	接线端子 Terminal	尺寸 Dimensions
产品型号 Type	额定电压 Rated V.	kvar	μF	A	接线端子 Terminal	A	B	C	D
GRO-CMP-EP 10/525-50	525	10	1116	11.0	M8	200	70	-	350
GRO-CMP-EP 15/525-50	525	15	173	16.5	M8	200	70	-	350
GRO-CMP-EP 20/525-50	525	20	231	22.0	M8	200	130	-	350
GRO-CMP-EP 25/525-50	525	25	289	27.5	M8	200	130	-	350
GRO-CMP-EP 30/525-50	525	30	347	33.0	M8	200	130	-	350
GRO-CMP-EP 35/525-50	525	35	404	38.5	M8	330	130	-	350
GRO-CMP-EP 40/525-50	525	40	462	44.0	M8	330	130	-	350
GRO-CMP-EP 45/525-50	525	45	520	49.5	M8	330	130	-	350
GRO-CMP-EP 50/525-50	525	50	578	55.0	M12	330	130	-	450
GRO-CMP-EP 60/525-50	525	60	693	66.0	M12	330	130	-	450
GRO-CMP-EP 70/525-50	525	70	809	77.0	M12	330	130	-	570
GRO-CMP-EP 80/525-50	525	80	924	88.0	M12	330	130	-	570
GRO-CMP-EP 90/525-50	525	90	1040	99.0	M12	330	130	-	570
GRO-CMP-EP 100/525-50	525	100	1155	110	M12	400	130	-	570

*可依客户要求定制

注: 1.外形尺寸和实际大小如有偏差，以实物为准。
